Merk: DJI
DJI Osmo Action Flat Adhesive Base Kit Dual Direction Quick Release
Beschrijving
DJI Osmo Action Flat Adhesive Base Kit Dual Direction Quick Release

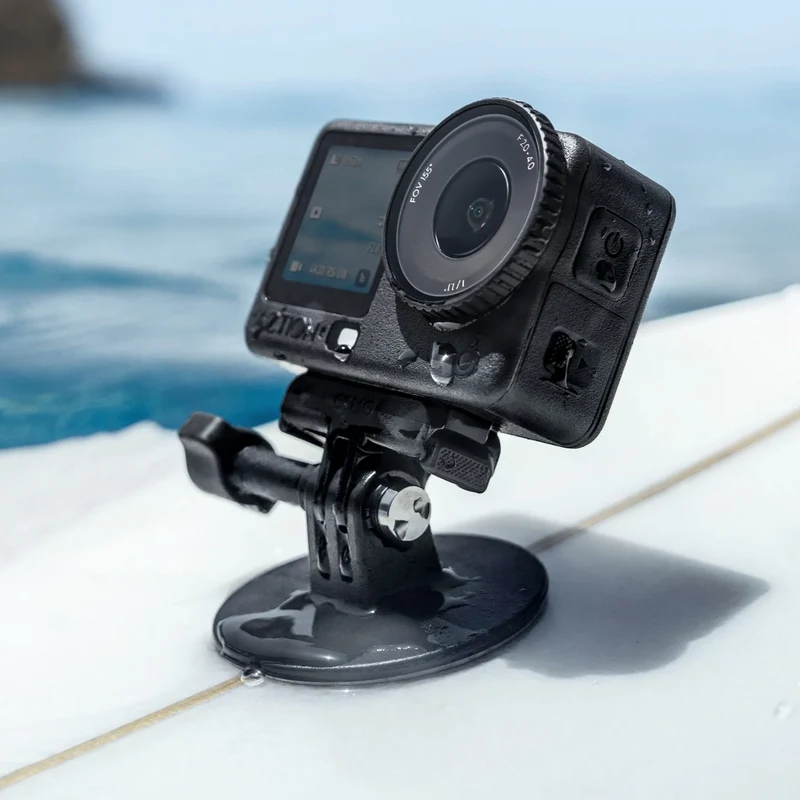

The DJI Osmo Action Flat Adhesive Base Kit Dual Direction Quick Release mounts your compatible Osmo camera securely to flat sporting equipment such as surfboards and snowboards for high-intensity shooting. It provides a quick-release interface so you can attach and remove the camera efficiently while keeping the base fixed in place.
Compatibility and use
This kit works with Osmo Action 6 and Osmo Nano cameras. The flat adhesive base is designed only for flat surfaces, and adheres best within a temperature range of -10° to 40° C (14° to 104° F). For reliable bonding, press the base down for 10 seconds and allow about 30 minutes before use.

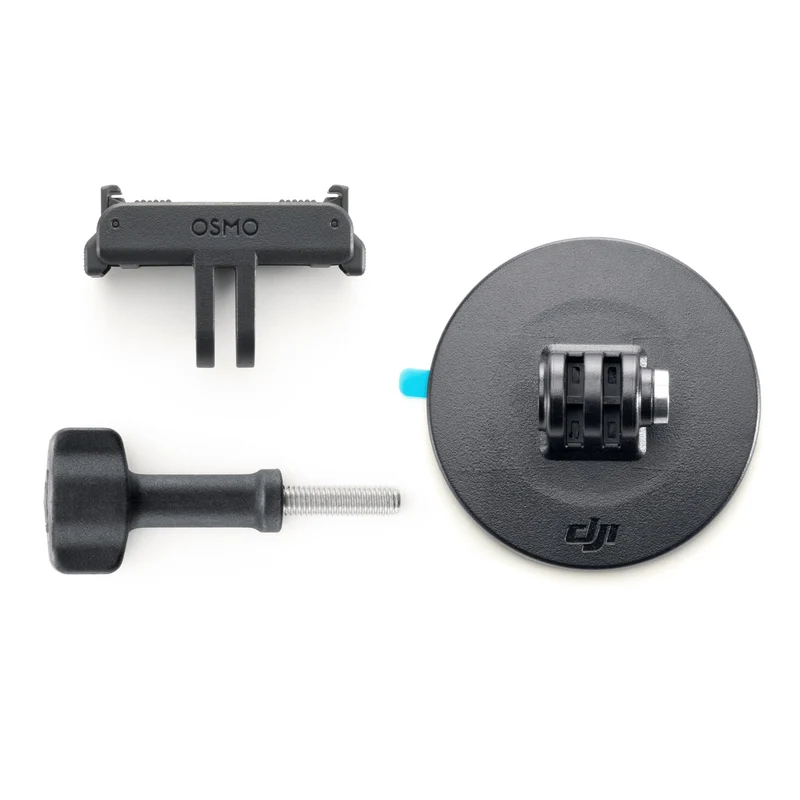

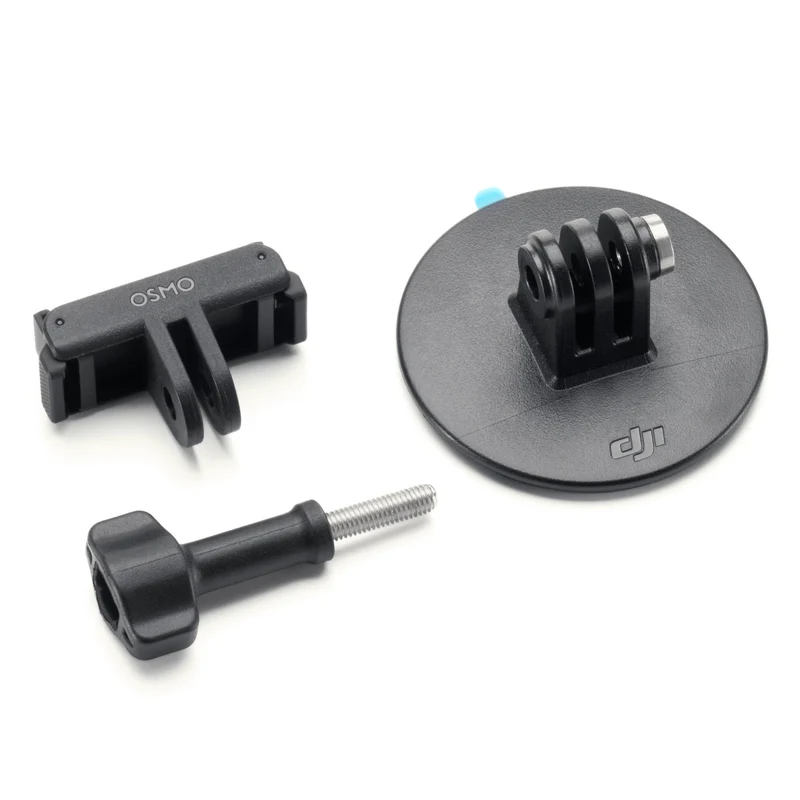

What's included
- Osmo Dual-Direction Quick-Release Adapter Mount × 1
- Osmo Flat Adhesive Base × 1
- Osmo Locking Screw × 1
Specifications
- Adapter Mount dimensions: 44.4 × 18.2 × 29 mm (L × W × H)
- Adapter Mount weight: 16 g
- Flat Adhesive Base dimensions: 59.7 mm (diameter), 29.33 mm (height)
- Flat Adhesive Base weight: 20.7 g
- Locking Screw dimensions: 55.6 × 23 × 13.3 mm (L × W × H)
- Locking Screw weight: 11.2 g

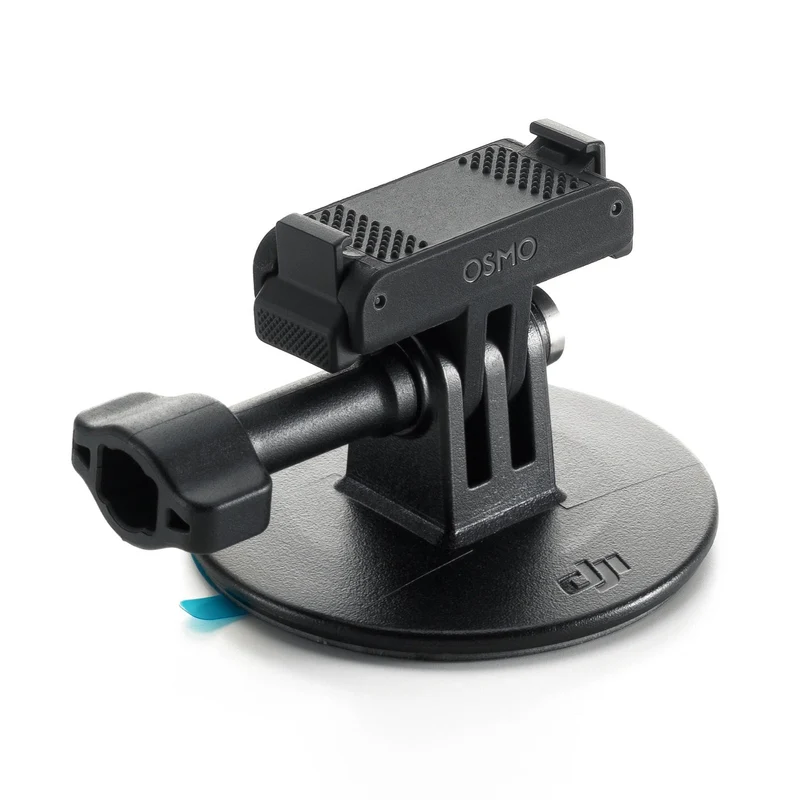

Design and durability
The dual-direction quick-release design lets you orient the camera as needed while keeping the mount solid under load, and the assembly is built to stay fixed even during hard impacts and fast-moving action. Avoid throwing, striking, or crushing the kit components to maintain reliable performance.
